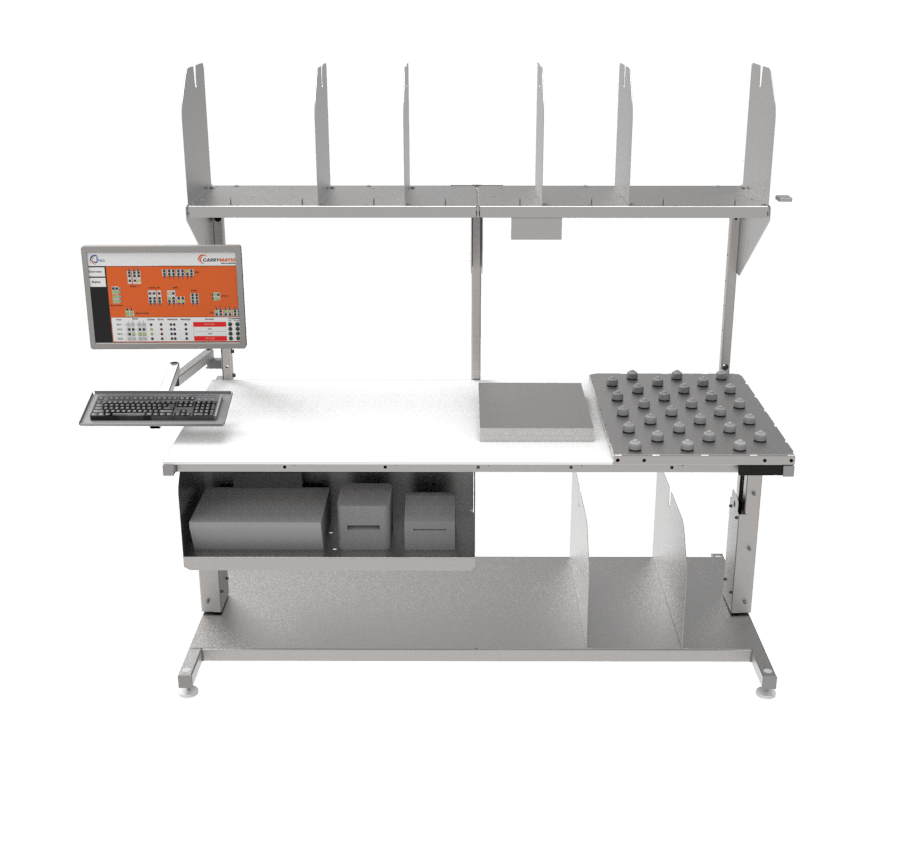

programmable height adjustments, a 1,000 lbs weight capacity, and integrated tools such as a scale and ball transfer work surface

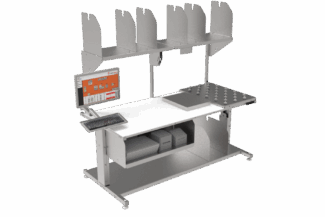

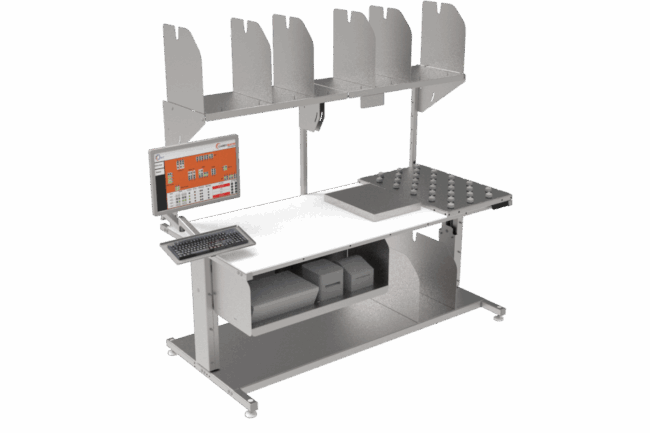

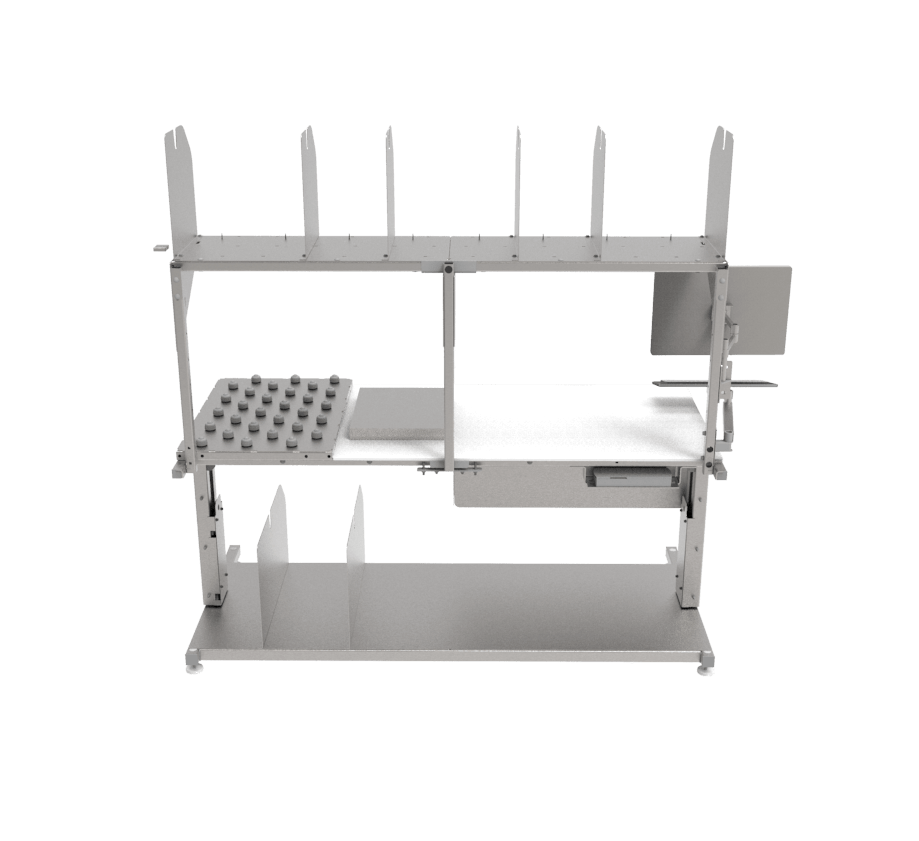

Ergo Pack Station
Adjustable Height: Features programmable table height controls that can store up to four height profiles.
Mounting Systems: Includes articulating mounts for both a monitor and a keyboard.
Work Surface: Equipped with a High-Density Polyethylene (HDPE) table top.
Material Handling: Includes a 24″ x 36″ ball transfer to assist with movement.
Integrated Scale: Features a built-in scale with an external display.
Product Pictures

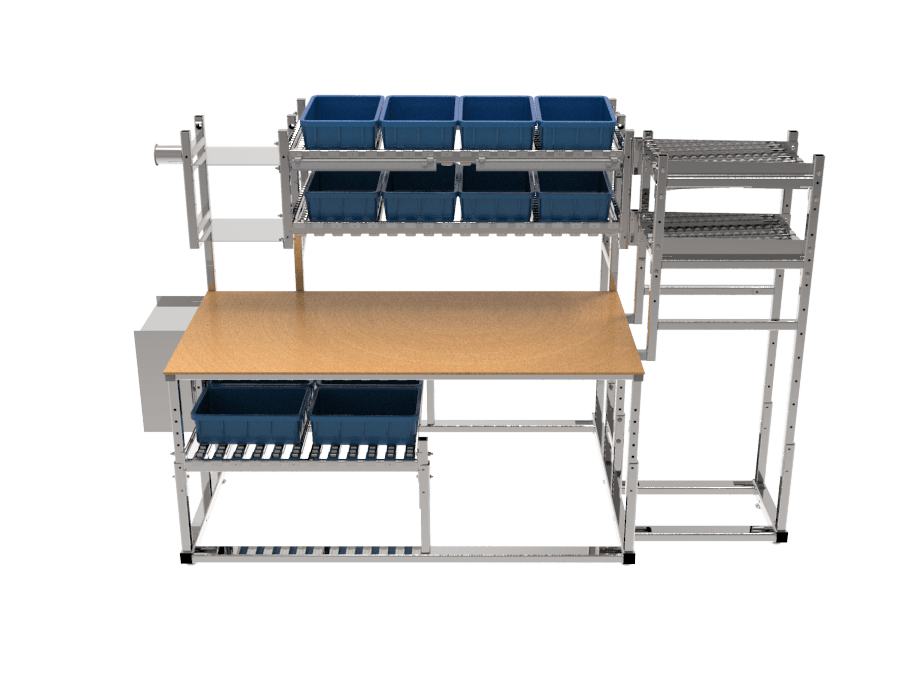

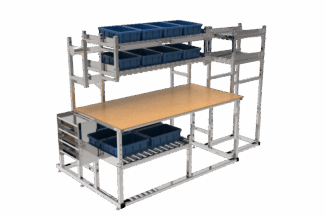

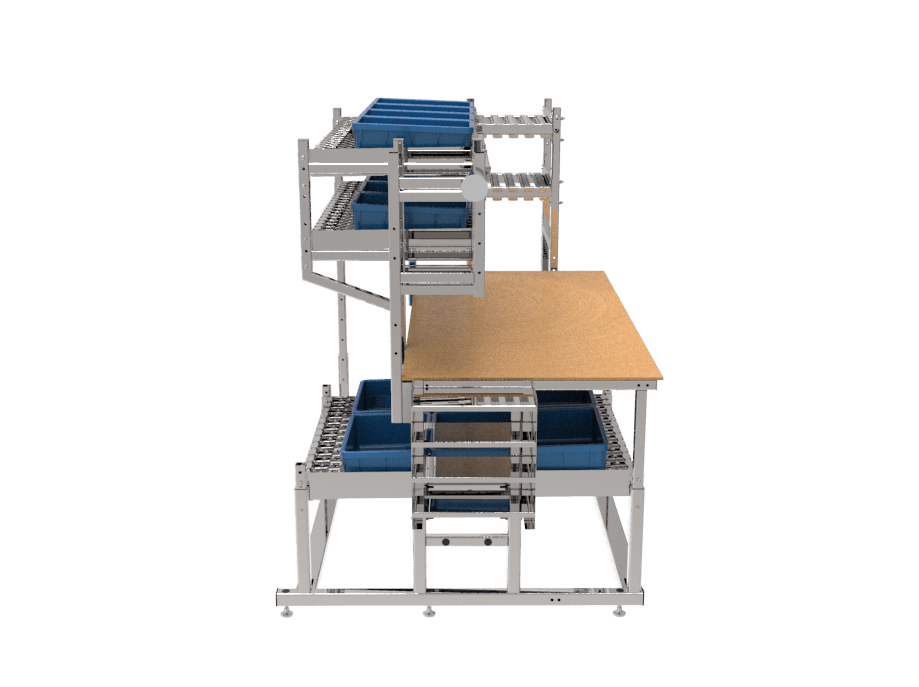

designed with integrated supply and return flow racks for efficient material handling

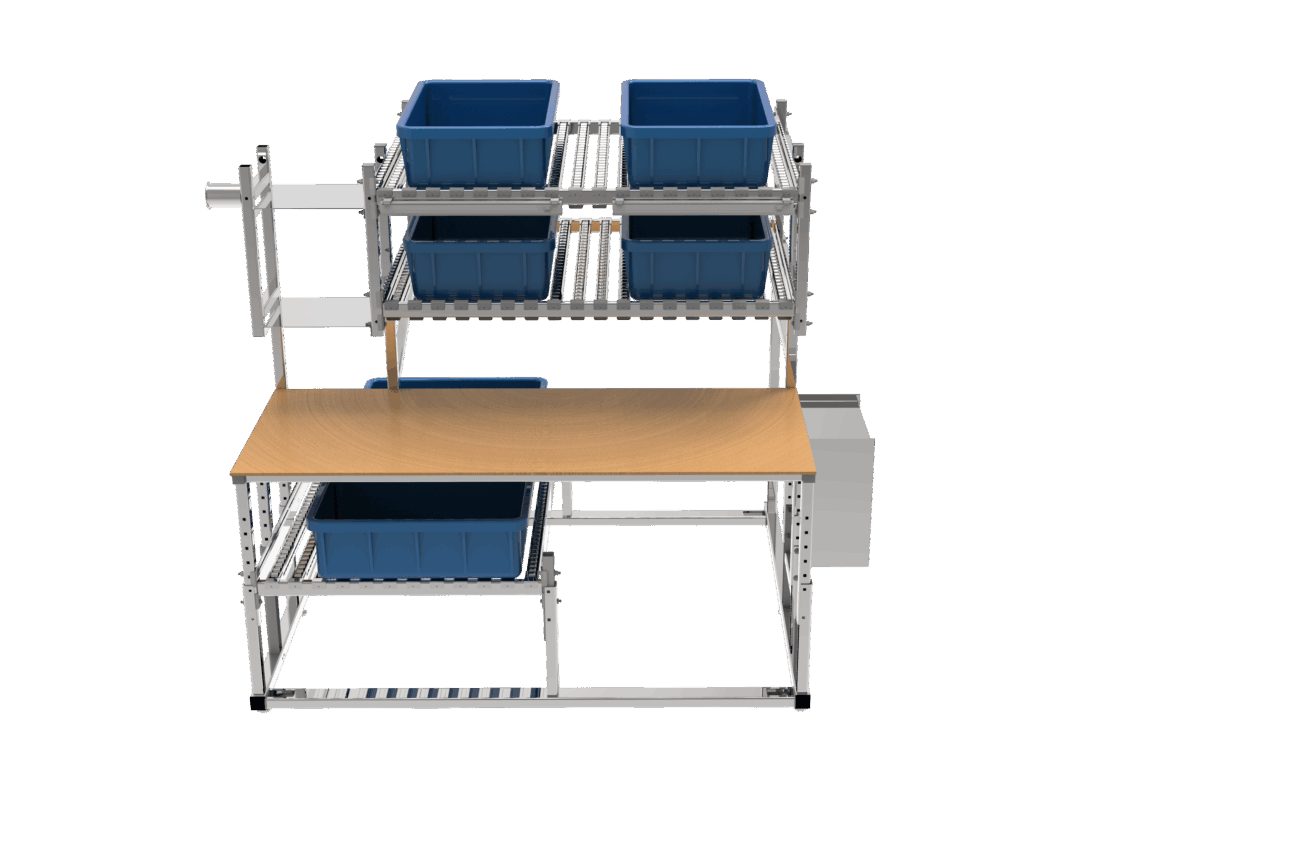

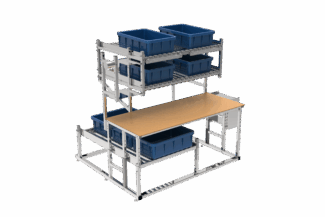

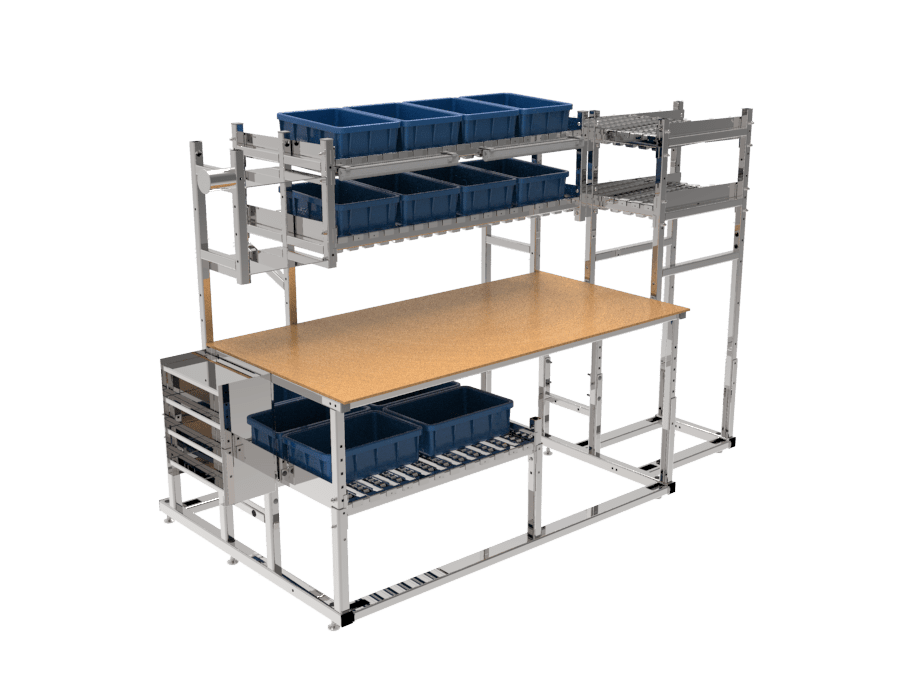

Gravity Flow Workstation
Features
Work Surface & Base: The workbench features a 72″ wide by 36″ deep table top made of 3/8″ HDPE material with floor leveling feet and an adjustable height.
Material Flow System: Includes two bolt-on supply flow racks with 18 rails per level and one bolt-on return flow rack with 12 rails, all set at a 1.9° slope for gravity movement.
Integrated Accessories: Equipped with two mounted workstation strip lights, a mounted battery charger, and a dedicated tool organizer.
Packaging Support: Features a welded 3″ round tube for mounting foam strip rolls and two bolt-on label dispenser shelves.
Product Pictures

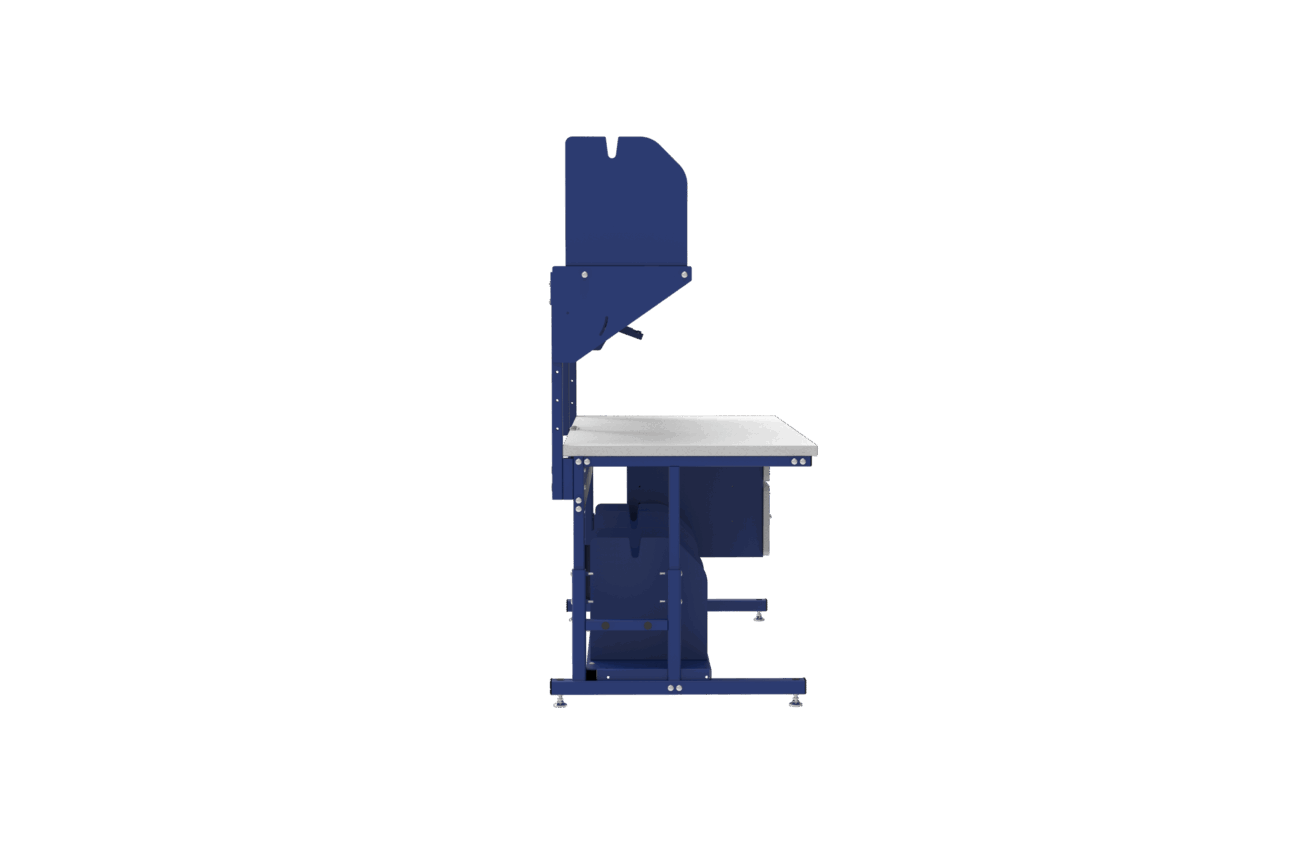

and fully reconfigurable industrial Pack Station designed to reduce shipping costs through a piece-part assembly system

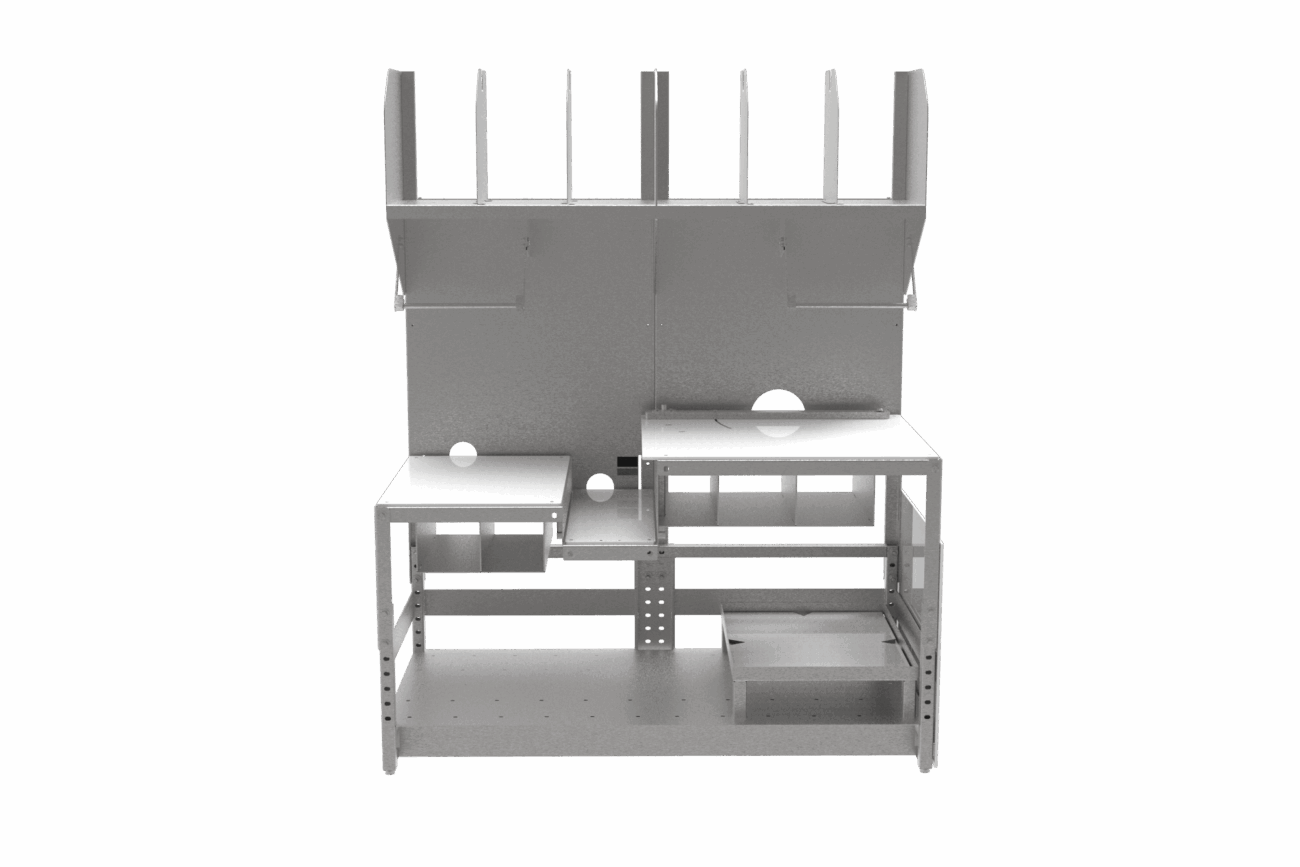

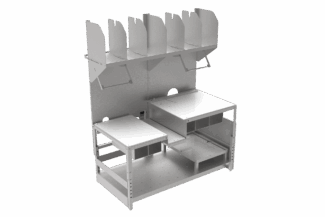

Pack Station
Features
Dimensions & Weight: The table has an estimated weight of 120 lbs and a footprint of approximately 60.24” x 19.93” x 28.76”, featuring adjustable legs and feet for height customization.
Durable Construction: It is built using 0.188” A-36 HR steel and 1.5” x 1.5” x 0.120” tube legs.
Modularity: The design supports interchangeable tabletops and is easily reconfigurable in length and height to meet specific workspace needs.
Tool-less Assembly: The concept utilizes innovative locking mechanisms—such as “Washer,” “Horizontal,” and “Rotating” locks—to minimize the need for tools and hardware during setup.
Product Pictures

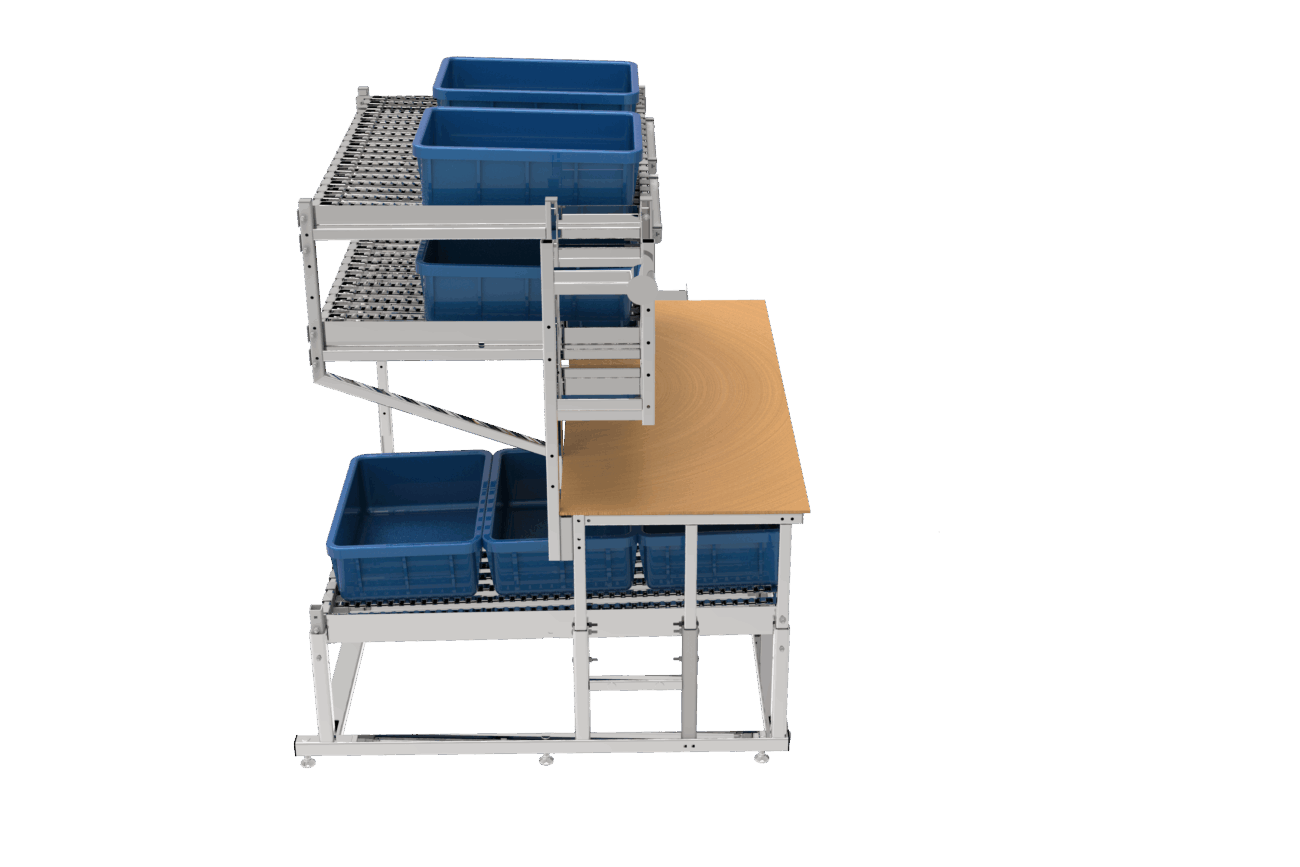

Designed for organized small part presentation with built-in tool organizer and battery charging stations

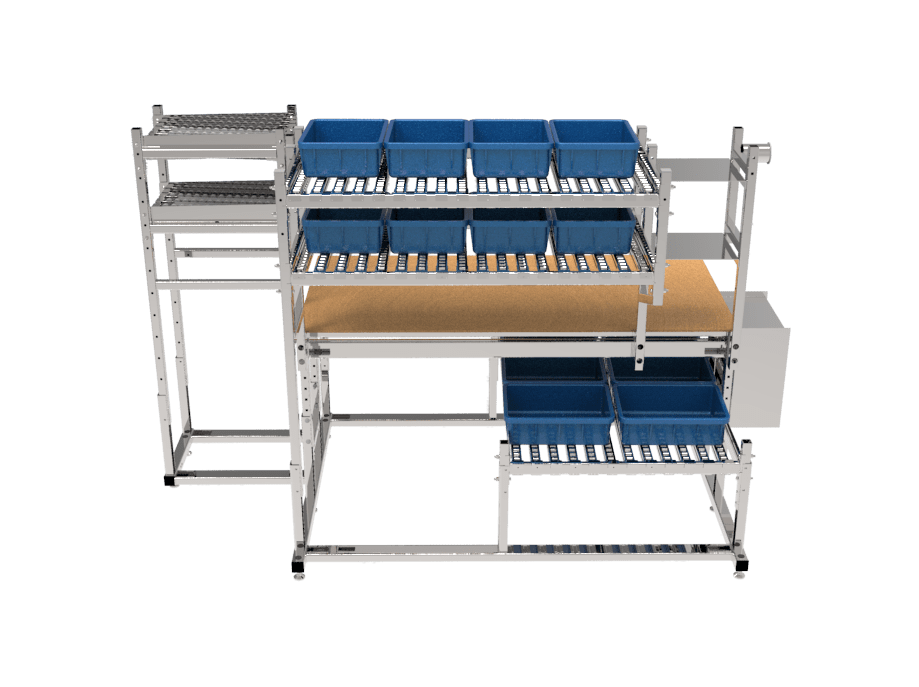

Custom Workstations
Features
Dynamic Ergonomic Adjustability: Jtec workstations can be configured with either manual floor-leveling feet or fully powered, programmable height systems that store multiple user profiles for multi-shift operations.
Modular Material Flow Systems: Workstations can be customized with bolt-on gravity-fed supply and return flow racks, allowing for specific lane slopes and the choice between standard skate lanes or specialized “Motion Mat” surfaces to match unique tote sizes.
Integrated Technology & Tooling Hubs: The designs assume a high degree of technical customization, offering articulating mounts for monitors and keyboards, integrated battery chargers, and dedicated cubbies for digital scales with external displays.
Workflow-Specific Packaging Accessories: Stations can be outfitted with modular accessories such as welded foam roll mounts, custom HDPE package-guiding funnel systems, and bolt-on label dispenser shelves to streamline outbound logistics.
Scalable & Reconfigurable Architecture: Utilizing modular “piece-part” assembly and tool-less locking mechanisms, these workstations are designed to be easily resized or updated with additional shelving and dividers as operational needs evolve.
Product Pictures

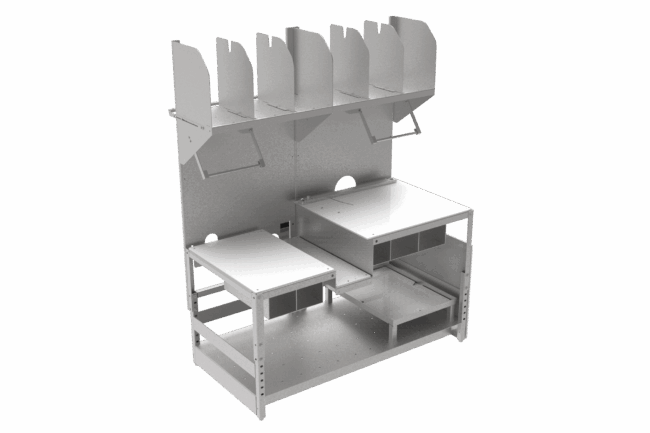

featuring a specialized package-guiding funnel system and integrated storage solutions to optimize packing workflows.

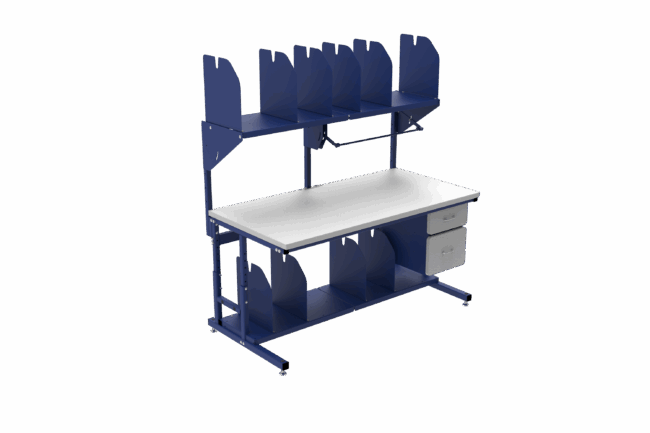

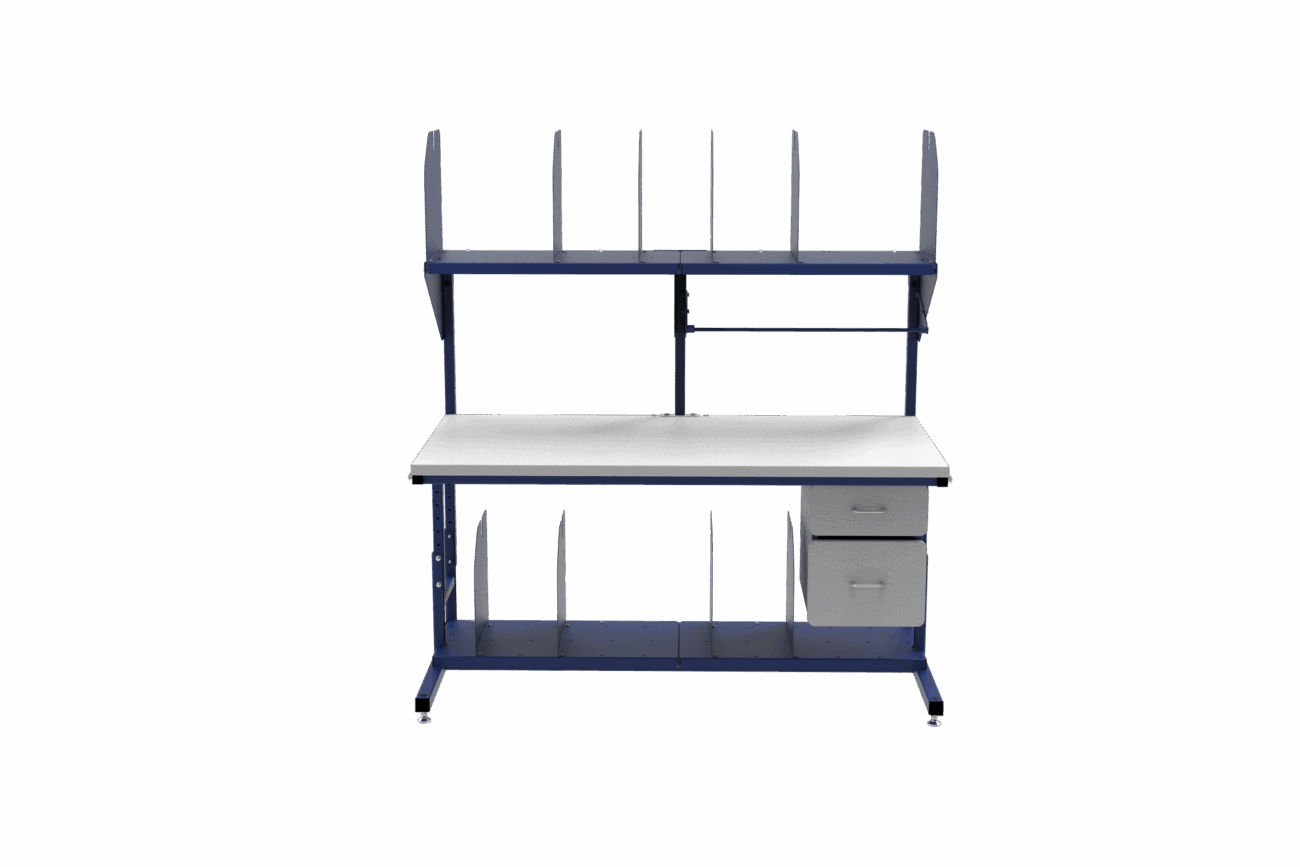

Modular Pack Stations
Features

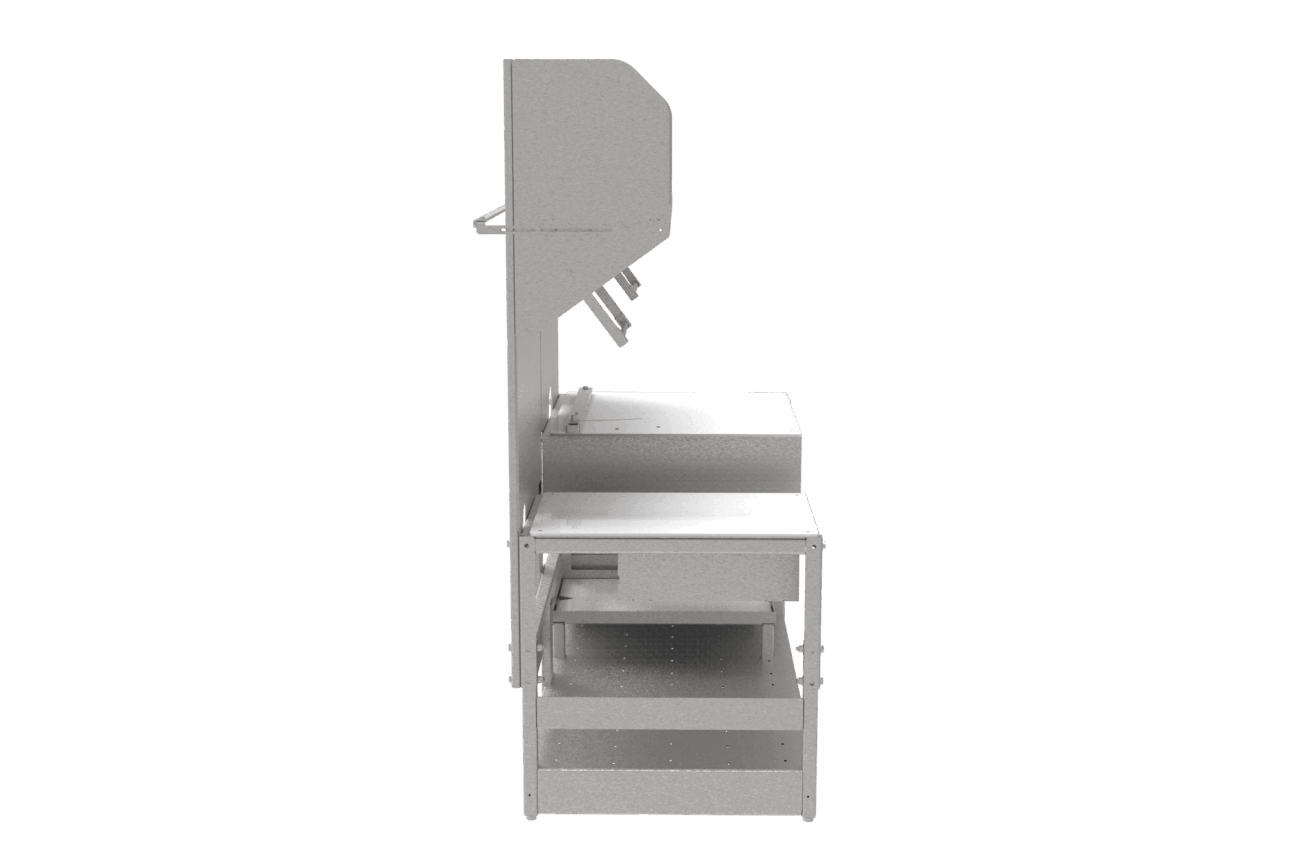

Work Surface & Adjustability: Features a 6-foot packing table with a table top that is adjustable in 2″ increments and includes floor leveling feet.
Weight Capacity: Built for heavy-duty use with a 500 lb capacity top shelf and a 1,000 lb capacity for both the table top and the bottom shelf.
Specialized Material Handling: Equipped with a custom HDPE plunger funnel system designed to guide packages, featuring stops at 11 degrees and 22 degrees
Storage & Organization: Includes integrated dividers, two label or paper towel holders, a dedicated scale cubbyhole, and a removable HDPE step shelf.
Product Pictures
