most popular vertical lift module

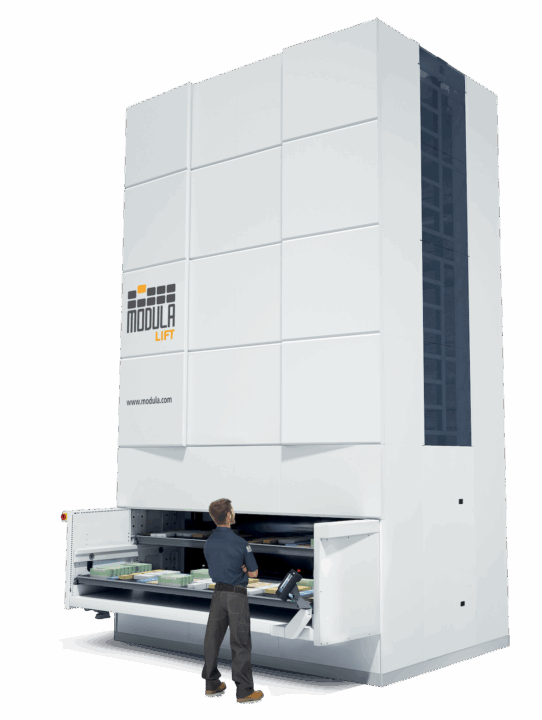

Modula Lift
Features
• Unit Height: 10’10”–52’10”
• Unit Height Increment: 7.87”
• Tray Storage Pitch: 1”
• Tray Widths: 59, 75, 98, 122 or 161”
• Tray Depths: 25.75” & 33.74”
• Net Tray Payload Cap: 551, 1,102, 1,653 and 2,182 lbs
• Gross Total Payload: 77,000–200,000 lbs
Product Pictures
The most compact VLM in the market

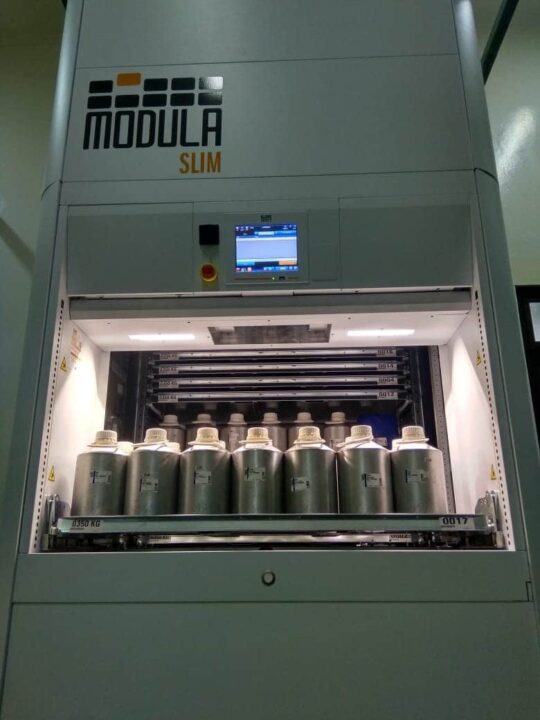

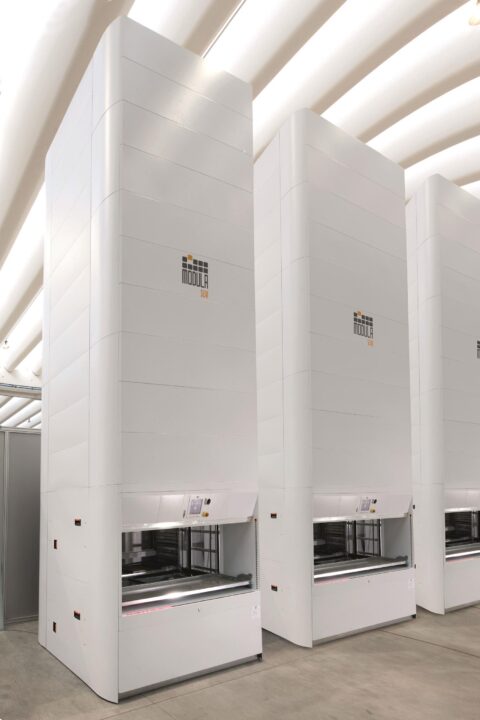

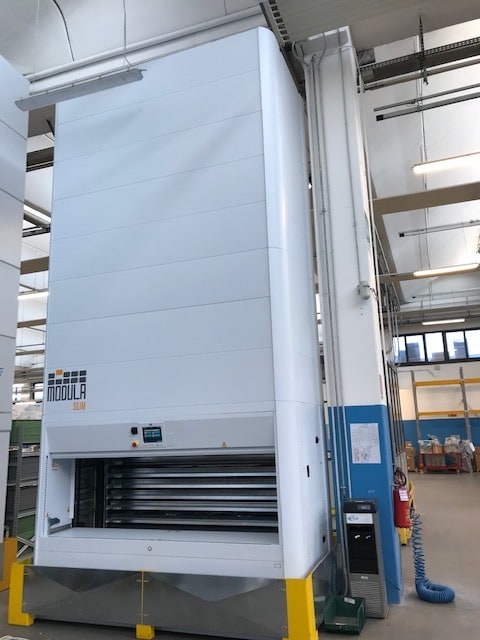

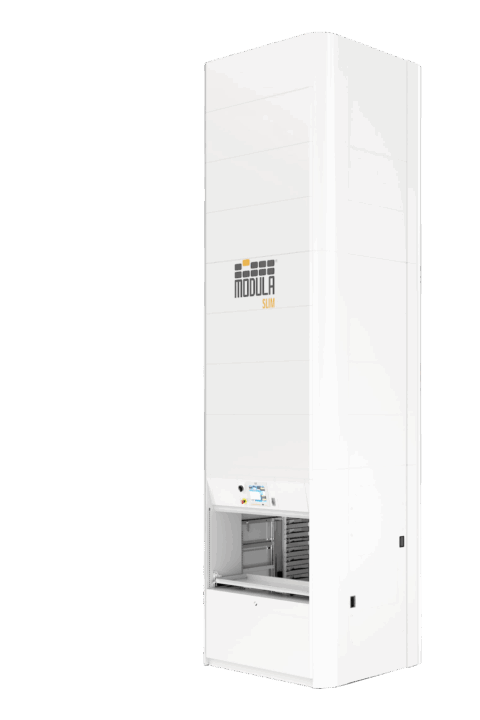

Modula Slim
Features
• Unit Height: 7’11”–22’12”
• Unit Height Increment: 3.94”
• Tray Storage Pitch: 1”
• Tray Widths: 51, 75 or 98”
• Tray Depths: 16.73”
• Max Tray Load Capacity: 771.68 lbs
• Unit Footprint: 66.33, 89.96, or 113.58” W X 65.90” D
Product Pictures
ENSURING THE RIGHT PART TO THE RIGHT PERSON. EVERY TIME.

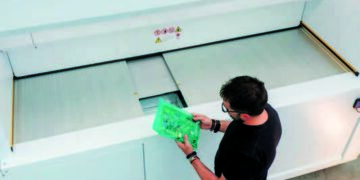

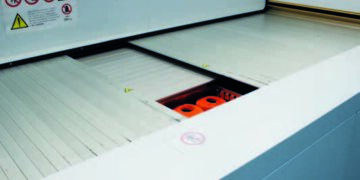

Modula Next
Features
• Tray Width: 98.43″
• Tray Depths: 25.75″
• Net Tray Payload Cap: 1,102 lbs
• Max Product Height: 9.65″
• Compartment Heights: 1.77″-2.76″-5.72″-6.69″-7.68″-9.65″
• Unit Footprint: 115.59″ X 117.56″
• Picking Window Size (in): Min: 3.94″ X 3.94″ Max: 98.43″ X 25.75″
Product Pictures

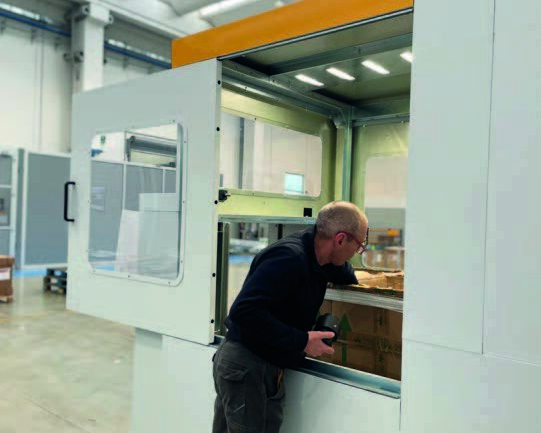

Safe & Efficient Ground-Level Pallet Handling
Modula Pallet
Features
• Pallet Size: 47.24″ X 31.50”
• Unit Height: 14’17” – 52’10”
• Tray Width: 57.48″, 73.2″, 120.47″, 160″
• Tray Depth: 49″
• Net Tray Payload Capacity: 550 lbs to 2,200 lbs
• Maximum Product Height: 47.2″(product) + 5.67″ (Pallet): Tot 52.87″
• Total Gross Capacity: 77,162 lbs to 198,416 lbs
Product Pictures
The Future of Fast and Flexible Order Fulfillment

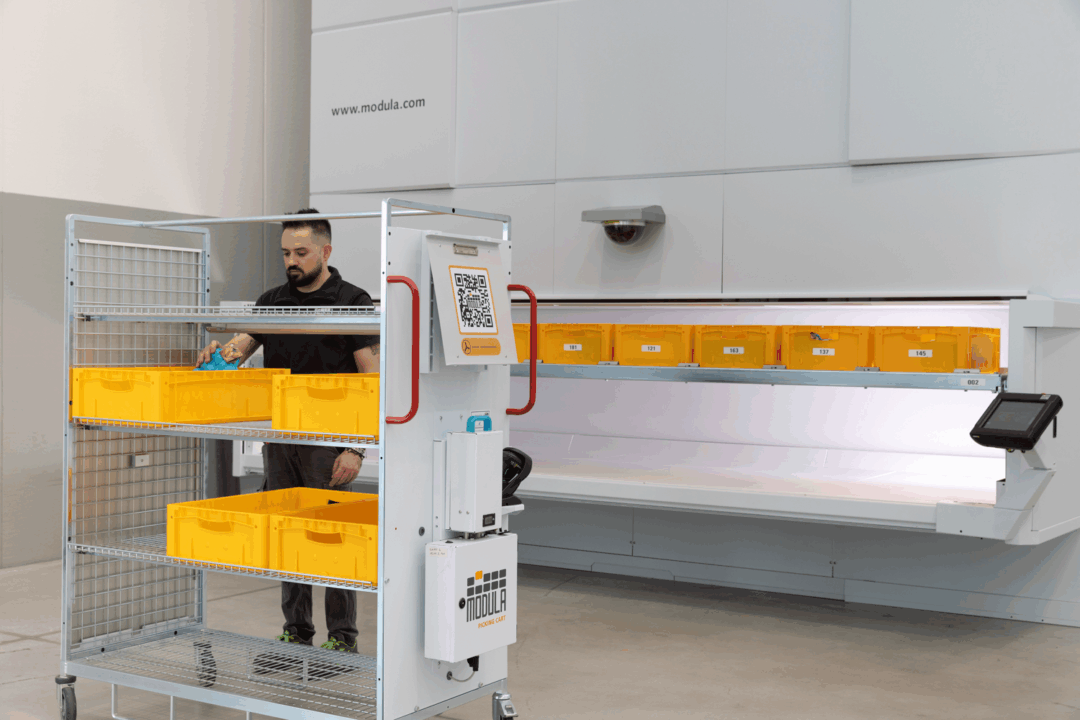

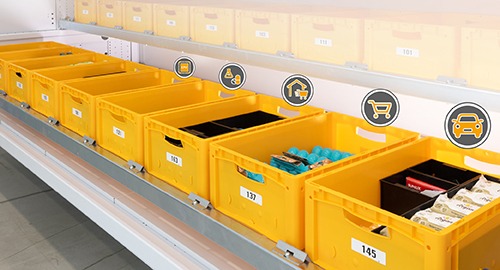

Modula Flexibox
Features
• Bin Size: 23.6″ x 15.7″
• Bin Payload Capacity: 77.2 lbs
• Bin Height Range: 4.7 to 16.5 in
• N. of Bins per Tray: 3-4-5-6-9
• Unit Height: 10.8 to 65.6 ft
• Unit Height Increment: 7.9 in
• Types Of Bay: Internal, External, Single and Dual Delivery
• Number of Bays: Up to 3, front and rear of the units or on multiple floors
Product Pictures
